K38 Linesman Trailer
inhoud

iron 2

And a partial roll of M31 solder with a 1945 contract date.

The wind screen, US marked Clayton Lambert model 24-A furnace, and a few accessories.





A few close-ups of the furnace. It took a long time to find one that is US marked.A few close-ups of the furnace.

1 FURNACE (6Q43167 ), with both gasoline and kerosene orifices, wrench, cleaning needle, and 7 5/8-inch by 5 1/2-inch hood, Wall Mfg. Supply Co. #50 Dreadnaught big Brute Splicers', or equal.

1 CAN (6Z1716), safety, red, 3-gallon, 3/8-inch flexible spout #252, Protectoseal #247, or equal.

1 WINDSHIELD (6Q43167/1), for #50 Dreadnaught Big Brute Splicer, or equal.

1 BELT LC-23-B (6Q4523B-40) or LC-23-A (6Q4523A-40), 40 inch length, lineman's size 22.

1 pair CLIMBERS LC-5 (6Q28205).

DESICCANT (6G250), 1/2-pint, W. A. Hammond, or equal, AT&T Co. spec. AT-6882

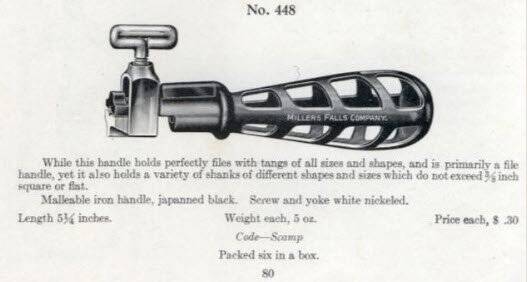

HANDLE ( ), file, Millers Falls #448, or equal.

MARLINE RP-2 (6Z6981). (I learned what MARLINE was today as well. As you can see it is a rough twine coated with TAR. This is used to wrap over some types of splices. Kind of like how you would wrap the ends of a rope to prevent it from unwinding)

RULE (6R9606), 6-foot, boxwood, "Zig-Zag," rivet-joint, Stanley #806, or equal.

1 SAW (6R11214), plumbers'; double-edge, 14", 6 and 8 points: similar to Disston #6, excep; 14-inch.

1 SAW (6R10314), cable, 14-inch, E.C. Atkins324, or equal.

2 SCISSORS (6R38005/1), 5-inch, electricians', Wiss #175E, or equal.

SCREWDRIVER TL-21 (6R15310) Fed Spec GGG-S-121, Type I: 2 1/2" blade, 5/32" Tip, 6 1/2" overall, insulated wood handle.
SCREWDRIVER TL-44 (6R16510) 8 or 8 1/2" blade, 1/4" tip, insulated Wood Handle, 13 or 13 1/2" overall: Stanley #45 or Equal.
SCREWDRIVER TL-106 (6R16810) 10"blade, 3/8" tip, insulated wood handle, 17" overall: Stanley #25 or Equal

SNIP (6R24011), tinners',Compton #10, or equal.

2 KNIFE TL-29 (6Q60229).

2 KNIFE ( ), chipping, 3-inch blade with sheath, WE Co. #531388, or equal.

TAPE (6R36025), 100-foot, measuring, steel, Lufkin Rival #246, or equal.

TAPE TL-83 (6N8583).

TAPE TL-94 (6N8594).

Tape TL-192
Tape TL-32

Test set I-48_B (Megger)

1 TEST SET I-51 (3F4051), splicers', portable, WE Co. #1020-C, or equal

1 TEST SET (3F4051C), splicers', portable, WE Co. model 76A.

TOOL (6R41701), wire braid stripper, Diamond, or equal.

TE-26A

TORCH (6R42100-32A), blow, gasoline, 1-quart, Clayton & Lambert Co. #32A, or equal.

WRENCH TL-111 (6R 55006) adjustable, single end, Crescent #A-16 (6", 3/4" Capacity)

Here is one item I am not so sure of
CABLE DRESSER TL-90 (6Q15290).

1 COIL (3C395), exploring, WE Co. #75-A or equal; for use with WE Co. #108 amplifier.

1 VISE (6R47016), 2 1/2-inch jaw, swivel base, stationary jaw, Stanley #710, or equal.

1 PLIERS TL-103 (6R4603)

1 PLIERS TL-107 (6R4607)

1 PLIERS TL-126 (6R4626)

2 PICK (6R3002), test, complete with cord and test clip.

2 TUBE (2V3Q5GT/G), RCA 3Q5GT/G; for WE Co. 76-A test set; 1 in use, 1 spare.

1 THERMOMETER (6Z8642), solder and paraffin, W.C. Dillion & Co. "Temperometer," or equal

TL-22a zaklamp

IN-56 glass insulators for stringing field wire

Onderdelenlijs:

DL SET TE-56-A (6R38056A): Cable Splicers'; for cable construction and maintenance. Used with but does not include Trailer K-38.

Comprises:

1 AMPLIFIER (2C398), consists of 1 Amplifier, WE Co. #107A,
1 Cord, WE Co. W2BJ, equipped with Tool, WE Co. #513A, and Plug, WE Co. #47 and
1 Cord, WE Co. R2CF, equipped with 1 Receiver, WE Co. #108A, complete with 3 Vacuum Tubes, WE Co. type 32, or equal.

25 ANCHOR (6Z284-4), hammer, drive 1/4- by 1-inch, Diamond, or equal.

25 ANCHOR (6Z284-6), hammer, drive 1/4- by 1 1/2-inch, Diamond, or equal.

6 rolls BANDAGE TL-97 (6N9597).

3 rolls BANDAGE (6N634-14), rubber, 4 inches by 14 feet, #3040, Amer E Co., or equal.

6 BATTERY BA-2 (3A2); formerly 3A6571.

4 BATTERY BA-23 (3A23); 4 used in Test Set 1020-C.

6 BATTERY BA-27 (3A27); formerly 3A6570.

8 BATTERY BA-27 (3A27); 2 used in FLASHLIGHT TL-122-A, 6 spare.

1 BELT LC-23-B (6Q4523B-40) or LC-23-A (6Q4523A-40), 40 inch length, lineman's size 22.

12 BLADE (6Q8010-32), hacksaw, flexible, 32 teeth per inch, 10 inch, for hand frame.

12 BLADE (6Q8110-24), hacksaw, flexible, 24 teeth per inch, 10 inch, for hand frame.

4 BOARD (6Q10001-51), fiber test, 52-hole, 1-51, Auto E. Co. #210, Kellogg #810, or equal.

4 BOARD (6Q10002-101), fiber test, 52-hole, 52-101, Auto E. Co. #811, Kellogg #811, or equal.

2 BOARD (6Q10003-202), fiber test, 52-hole, 102-152, Auto E. Co. #812, Kellogg #812, or equal.

2 BOARD (6Q10003-253), fiber test, 52-hole, 152-202, Auto E. Co. #813, Kellogg #813, or equal.

2 BOARD (6Q10004-203), fiber test, 52-hole, 203-253, Auto E. Co. #814, Kellogg #814, or equal.

2 BOARD (6Q10051), fiber test, 52-hole, 253-303, Auto E. Co. #815, Kellogg #815, or equal.

50 BOARD (6Q10051) test, linen, splicers',numbered 51 to 99 and 1 to 51 (AT&T Co. spec. 6623).

50 BOARD (6Q10068) test, linen, splicers',numbered 1 to 68 (AT&T Co. spec. 6255).

1 BOOK (6D7100), specification, cable splicing, #4860 with supplements A,B, and C, ATT&T Co., or equal, with Binder #106, or equal.

6 BOOK (6D7101), specification, AT&T Co. with six Binder #106, or equal

1 CAN (6Z1716), safety, red, 3-gallon, 3/8-inch flexible spout #252, Protectoseal #247, or equal.

12 CLAMP (5B3508), bonding ribbon, rolled zinc, 1/2-inch wide, 5/16-inch holes, WE Co. #510982, or equal.

1 CLEANER (6Q27052), file, Nicholson #2, or equal.

1 pair CLIMBERS LC-5 (6Q28205).

12 CLIP ( ), transfer, AT&T Co. spec. 6869, or equal.

6 CLOTH (6N1621), cable wrapping, cotton, waterproof, approximately 25 by 40 inches, Auto E Co. #546, or equal.

6 CLOTH MC-74 (6N1574).

6 CLOTH MC-76 (6N1576).

2 CLOTH (6N1637), wiping, for upright joint, 1 3/4-inch center opening by 11-inch O.D., Williams, or equal.

2 CLOTH (6N1638), wiping, for upright joint, 3 3/4-inch center opening by 14-inch O.D., Williams, or equal.

1 COIL (3C395), exploring, WE Co. #75-A or equal; for use with WE Co. #108 amplifier.

6 CORD (3EW2AK), test with clips, WE Co. #W2AK, or equal.

10 cans DESICCANT (6G250-1), 1/2-pint, W. A. Hammond Drierite Co., or equal.

1 set DIES (6Q31004), marking, steel figures, 1/4-inch set.

1 set DIES (6Q31104), marking, steel figures, 1/4-inch set

1 DIPPER ( 6Q31716), paraffin, black pressed steel, 4 13/16-inch diameter at top, 3 1/4 inches deep, 1 3/4-pint capacity, mild steel hooked handle riveted on.

1 DRESSER 96Q31966), cable-wood, WE Co. dwg. 466-13, or equal.

1 DRIFT PIN TL-81 (6Q31981).

1 DRIFT PIN TL-98 (6Q31998).

1 DRIFT PIN TL-99 (6Q31999).

1 DRILL (6Q35311), 4-point, 1/4 inch, 8 inches long, "Diamond N," or equal.

1 DRILL (6Q35310), 4-point, 3/8 inch, 8 inches long, "Diamond N," or equal.

1 DRILL (6Q35312), 4-point, 1/2 inch, 8 inches long, "Diamond N," or equal.

1 DRILL (6Q35313), 4-point, 3/4 inch, 8 inches long, "Diamond N," or equal.

1 DRILL SET( 6Q35309 ), Di-Forge, "Diamond," with type C holder, Graybar, or equal.

1 FILE (6Q38027), combination, splicers', WE Co. spec. type H, or equal.

1 FILE (6Q38030-8), flat, 8-inch, bastard.

1 FILE (6Q38120-6), half-round, 6-inch, bastard.

1 FLASHLIGHT TL-122-A (6Z4002A.1).

1 FORM (6Q40003), bonding tool, aluminum, aerial, Slindelar Bonding Tool Co., or equal.

10 FORM (6Q40004), soldering, for bonding ribbon, 7/8-inch, WE Co. or equal, AT&T Co. spec. 6531.

1 FRAME (6Q41000), hacksaw, adjustable, 8- to 12-inch.

2 FUNNEL (6Z4021-8), seamless, small, 1/2-pint, Masback #1062N, or equal.

1 FURNACE (6Q43167 ), with both gasoline and kerosene orifices, wrench, cleaning needle, and 7 5/8-inch by 5 1/2-inch hood, Wall Mfg. Supply Co. #50 Dreadnaught big Brute Splicers', or equal.

1 HAMMER TL-39 (6Q49139).

1 HAMMER (6Q49600), lineman's, double-faced, 2 1/4-pound, Bell System Pattern, Vaughan & Bushnell, Graybar #13.

1 HAMMER ( 6Q50018 ), riveting, 18-ounce.

3 HANDLE ( 6Q51131-5), file, Millers Falls #448, or equal.

3 HANDLE ( 6Q51185-5.1), soldering iron, spec. NN-H-106.

1 HANDLINE (6Z5045), aerial, 60 feet of 1/2-inch rope with ring spliced in one end, ring and open hook in other end, sheave block having shell integral with a hook, AT&T Co. spec 6859.

1 HANDSET ( 4B1158), lineman's with #4 dial and switch; equipped with W2BT cords and JP clips, WE Co. #1011BW, or equal.

1 HOOK (6253100), manhole cover, Cope Inc. type "A," or equal.

2 HOOK (6Q52961), pot, 5/16-inch steel, 10 3/8-inch over-all, WE Co., or equal.

2 HOOK (6Q53519), shave, oval, 5 3/4 inches over-all, with sheath, Pexto, Bell Systems Pattern, or equal.

10 pounds INSULATING COMPOUND IC-5 (6N3005).

1 KETTLE (6Q58013), compound, double-jacketed, 5-quart, Wall Mfg. Supply Co., or equal.

1 KIT (6Z6600), first-aid, 5 by 4 by 3 inches, Johnson & Johnson Co., or equal.

2 KNIFE TL-29 (6Q60229).

2 KNIFE ( ), chipping, 3-inch blade with sheath, WE Co. #531388, or equal.

1 LADLE (6Q62531), pouring, 3 1/2-inch, 3/8-pint, Auto E Co. #S-5712.

1 LADLE (6Q62530), melting, wrought-iron handle, double-lip, 3-inch.

10 pounds MARLINE RP-2 (6Z6981).

1 MEGGER (3F3230), "Supper-Meg," O-100-megohm, 500-volt, James G. Biddle #619, or equal.

1 MIRROR (6N3100), cable splicers', steel, chromium-plated case, WE Co., or equal.

5 pounds OAKUM (6Z7250), plumbers', 7-strand, 1 3/4-inch diameter, untarred, Manning, Mazwell, & Moore, or equal.

1 can OIL (6G1385), neat's-foot, 1-pint.

1 can Oil (6G1389), splicing, cold stripping, in pint can, WE Co., or equal.

1 can PAINT (6G1409), asphalt, 1-pint.

1 PAN (6R2321), drip, approximately 21 by 18 by 4 inches, smooth, polished, blued steel, All-Steel Equip. Co., or equal.

8 pounds PARAFIN WAX IC-4 (6N4004).

1 can PASTE (6N4102), soldering, 2-ounce.

3 rolls PASTER MC-73-A (6N4273A).

2 PICK (6R3002), test, complete with cord and test clip.

1 PLIERS TL-103 (6R4603)

1 PLIERS TL-107 (6R4607)

1 PLIERS TL-126 (6R4626)

2 POINT (6N4600), test, cable splicers', with cord and test clips.

1 POT (6R6360), paint, P.B., nonspillable, Salisburry, or equal.

1 POT (6R6300.1), paraffin melting, 10-inch I.D. by 7 1/2 inches deep, with clamp-on lid, capacity 9 quarts.

1 POT (6R6350D), plumbers' melting, 6 inch.

1 PUNCH (6R7508), center, 1/2-inch.

1 PUNCH (6N4402), sleeve, 5/32-inch, Bell System standard, WE Co.,or equal.

1 PUNCH (6N4403), sleeve, 1/4-inch, Bell System standard, WE Co., or equal.

50 feet RIBBON (6N4903), bonding, copper, 3/8 inch wide, #16 B&S. Auto E Co., or equal.

2 RULE (6R9606), 6-foot, boxwood, "Zig-Zag," rivet-joint, Stanley #806, or equal.

1 SAW (6R10314), cable, 14-inch, E.C. Atkins324, or equal.

2 SCISSORS (6R38005/1), 5-inch, electricians', Wiss #175E, or equal.

24 SCREW (5B10004-2.5), lag, steel, galvanized, 1/4- by 2 1/2-inch.

48 SCREW (6L9110-8), wood, round head, steel, galvanized, 1-inch, #10.

48 SCREW (5B14010-20), wood, round head, steel, galvanized, 2 1/2-inch, #10.

1SCREWDRIVER TL-21 (6R15310).

1 SCREWDRIVER TL-44 (6R16510).

1 SCREWDRIVER TL-106 (6R16810).

1 SCREWDRIVER SET TL-128 (6R19100).

1 SHOVEL (6R22010), manhole, Bell System Pattern #70, WE Co., or equal.

2 boxes SLEEVE FT-96 (6N6008), 700 per box.

6 boxes SLEEVE FT-97 (6N6010), 400 per box.

2 boxes SLEEVE FT-98 (6N6016), 300 per box.

1 roll SLEEVING FT-90 (6N6890), Auto E Co. #2, or equal.

1 SNIP (6R24011), tinners',Compton #10, or equal.

5 pounds SOLDER M-30 (6N7530),

1 spool SOLDER M-31 (6N7531).

5 pounds SOLDER M-33 (6N7533).

50 pounds SOLDER (6N7605), arsenic content, in pigs, Belmont S&R Works, Inc., or equal.

9 pounds SOLDER (6N7606), stearine core, Bell System, WE Co., or equal.

1 pound SOLDER (6N7600), wire, half and half, #10.

1 SOLDERING IRON (6R24524-1), size 3.

1 SOLDERING IRON (6R24540), size 5.

1 SOLDERING IRON (6R24564), size 8.

1 SOLDERING IRON TL-117 (6R24617).

6 sticks STEARINE COMPOUND IC-3 (6N8003).

5 STRIP (6R32605), leather, 1/8- by 2- by 24 inch strap leather; for insulated joints.

10 SUPPORT (6R32800), aerial cable, 22-inch, #3, national %3, or equal.

10 SUPPORT (6R32801), aerial cable, 22-inch, #5, WE Co., or equal.

12 TAGS (4z7293), cable, round, Bell System, WE Co., or equal.

12 TAGS (4Z7294), cable, octagonal, Bell System, WE Co., or equal.

12 TAGS (4Z7295), terminal, Bell System, WE Co., or equal.

2 TAPE TL-83 (6N8583).

2 TAPE TL-192 (6N8592).

1 TAPE TL-109 (6N8609).

2 rolls TAPE (6N8832-36), friction 2 inches wide, 1 1/2-pound roll.

3 rolls TAPE (6N8835), lead serving, national Lead Co., or equal.

1 roll TAPE (6R36046), measuring, linen, 5/8 inch wide, 100 feet long, Lufkin Rival #406, K and E 7495T; formerly 8A3730-4.

3 rolls TAPE (6N8595), rubber, 2-inches wide, 30-foot roll.

6 rolls TAPE 96N8932), scotch, electrical, tan, 1/2 inch by 36 yards, Bell System, WE Co., or equal; formerly 8A3730-4.

1 TEST SET I-51 (3F4051), splicers', portable, WE Co. #1020-C, or equal.

1 TEST SET (3F4051C), splicers', portable, WE Co. model 76A.

2 TEST SET (3F4004), splicers', portable, WE Co. #62A, or equal.

1 THERMOMETER (6Z8642), solder and paraffin, W.C. Dillion & Co. "Temperometer," or equal.

1 TIP (6R24617/1); for SOLDERING IRON TL-117; spare.

1 TOOL (6R41016B), screwdriver and socket wrench, WE Co. #216-B, or equal.

1 TOOL (6R41701), wire braid stripper, Diamond, or equal.

1 TORCH (6R42100-79A), blow, gasoline, 1-quart capacity, Bernz #79A Dreadnaught Heavy Duty, or equal.

1 TROUGH (6Z8719), paraffin, 14- by 28-inch, brass grommet in each corner, AT&T Co. Standard spec. 6361, or equal.

6 TUBE VT-44 (2T44); for WE Co. amplifier #108A; 3 in use, 3 spare.

2 TUBE (2V1A7GT), RCA 31A7GT; for WE Co. 76-A test set; 1 in use, 1 spare.

2 TUBE (2V3Q5GT/G), RCA 3Q5GT/G; for WE Co. 76-A test set; 1 in use, 1 spare.

1 VISE (6R47016), 2 1/2-inch jaw, swivel base, stationary jaw, Stanley #710, or equal.

12 WEDGE (6Z9430), lead cable, for Y joints, WE Co. #1, or equal

1 WINDSHIELD (6Q43167/1), for #50 Dreadnaught Big Brute Splicer, or equal.

200 feet WIRE W-72 (1A72).

100 feet WIRE (1A890), lead lashing, tinned bronze case.

1 pound WIRE (1A812.6), tie, copper, 0.080, 17 inches long, Bell System, WE Co., or equal.

1 WRENCH (6R57415), socket, linemans', Chance #154, or equal.

1 WRENCH TL-111 (6R 55006)
